MFA, Active, 1MHz up to 6 GHz The MFA family consists of four active magnetic field probes. The MFA 01 includes three magnetic field probes. The MFA 02 set consists of two magnetic field probes for low frequency measurements.

MFA 01 set, Micro Probes 1 MHz up to 6 GHz The MFA 01 set includes high-resolution near-field micro probes used to measure magnetic fields up to 6 GHz, e.g. at signal conductors (150 µm), SMD components (0603-0201), or IC pins. Each hand-guided MFA near-field micro probe has an integrated preamplifier. The amplifier stage (9 V, 100 mA) is po…

MFA 02 set, Micro Probes 1 MHz up to 1 GHz The MFA 02 set includes two high-resolution near-field micro probes used to measure low-frequency magnetic fields up to 1 GHz, e.g. at signal conductors (150 µm), SMD components (0603-0201) or IC pins. Each hand-guided MFA near-field micro probe has an integrated preamplifier. The amplifier stage (9…

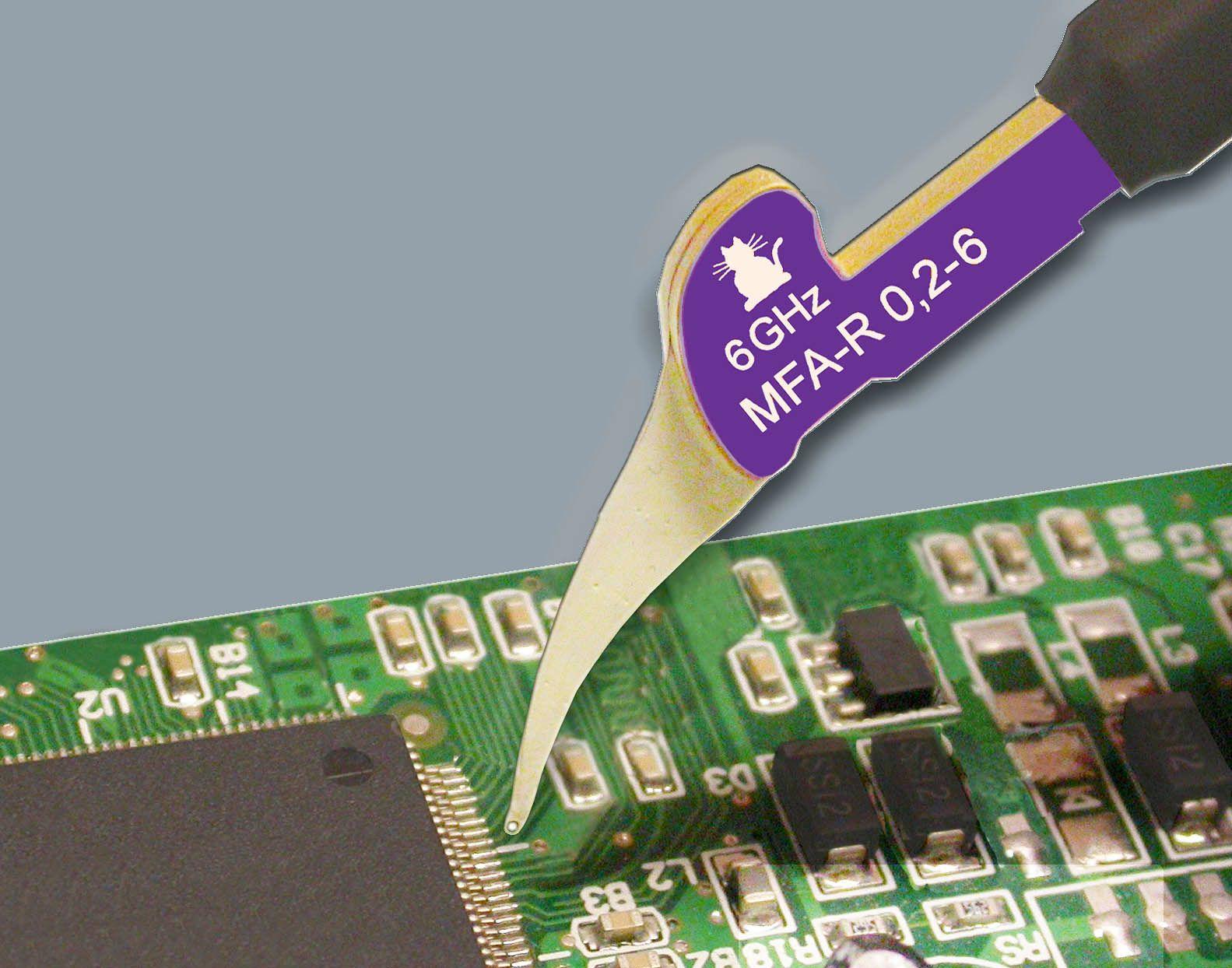

MFA-R 0.2-6, Near-Field Micro Probe 100 MHz up to 6 GHz The MFA-R 0.2-6 near-field micro probe has an extremely small and high resolution probe head. It is suitable for measuring RF magnetic fields up to 6 GHz on components, e.g. close to IC pins, finest conducting paths or smallest SMD components (0603-0201).

MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz The MFA-R 0.2-75 near-field micro probe has an extremely small and high resolution probe head. It is suitable for measuring RF magnetic fields up to 1 GHz on components, e.g. close to IC pins, finest conducting paths or smallest SMD components (0603-0201).

MFA-K 0.1-12, Near-Field Micro Probe 100 MHz up to 6 GHz The MFA-K 0.1-12 near-field micro probe has an extremely small probe head which functions like a coupling clamp. It allows for current measurements at IC pins and the finest conducting paths. The near-field micro probe is shielded from field lines entering the probe head laterally.

MFA-K 0.1-30, Near-Field Micro Probe 1 MHz up to 1 GHz The MFA-K 0.1-30 near-field micro probe has an extremely small probe head which functions like a coupling clamp. It allows for current measurements at IC pins and the finest conducting paths. The near-field micro probe is shielded from field lines entering the probe head laterally.

The MFA near-field probes are not suitable for RF coupling (injection)! ** The MFA microprobes are active near-field probes, i.e. they have an integrated pre-amplifier. With a measurement resolution range up to 300 µm, these probes are particularly suitable for measuring RF magnetic fields in very small areas on the assembly, e.g. IC pins, the thinnest conducting paths, or smallest SMD components (0603-0201).**
