HR série

HR, Passive, up to 40 GHz The HR family consists of an H-field probe and an E-field probe for the measurement of high-frequency RF fields up to 40 GHz during development.

HR1 set, Near-Field Probes up to 40 GHz The HR1 set contains one E-field probe HR-E 40-1 and one magnetic field probe HR-R 8-1 each for the development-accompanying measurement of magnetic and electric field in the frequency range up to 40 GHz.

HR-R 8-1 set, Near-Field Probe Set up to 40 GHz B-field The HR-R 8-1 set contains the HR-R 8-1 B field probe. With this probe magnetic field measurements up to 40 GHz can be performed. The special probe head of the HR-R 8-1 allows measurements on IC's, circuit board structures and components for the localization of high frequency magnetic fields.

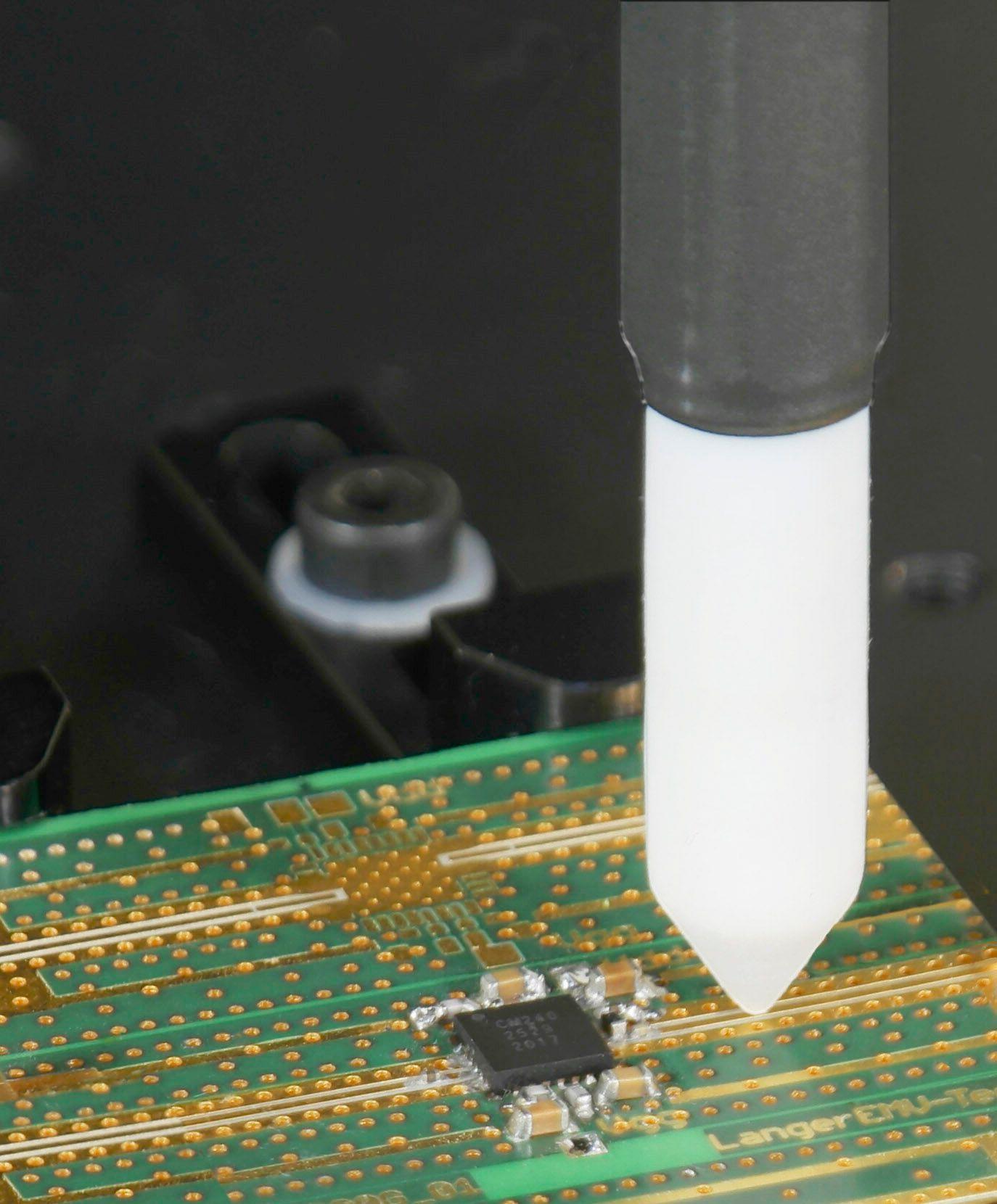

HR-E 40-1 set, Near-Field Probe Set up to 40 GHz E-field The HR-E 40-1 set contains the HR-E 40-1 E-field probe. With this field probe measurements up to 40 GHz can be performed. The special probe head of the HR near-field probe enables measurements to be taken directly on individual conductor tracks to localize E-field sources.
