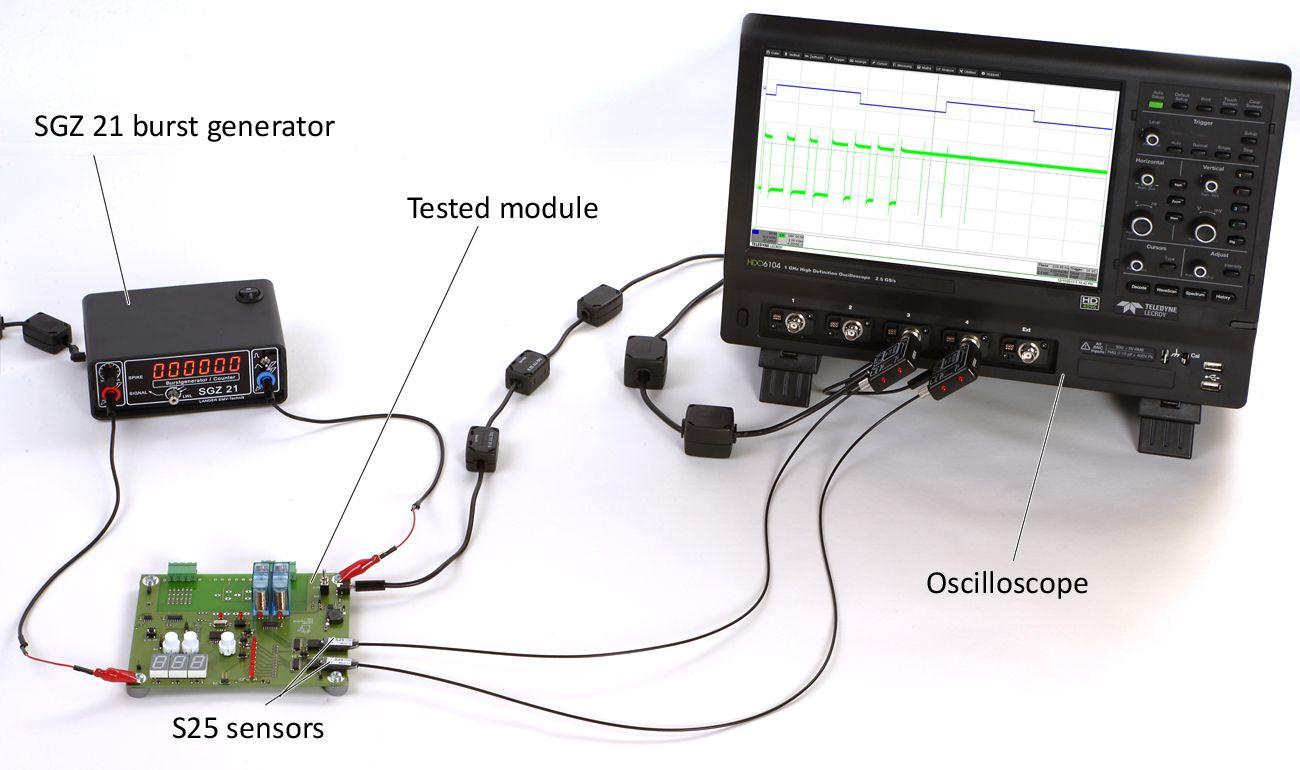

Short description The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer’s desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.

Scope of delivery 1x SGZ 21, Burst Generator 1x S21, Optical Sensor (10 Mbps) 1x BS 02, Magnetic Field Source 1x BS 04DB, Magnetic Field Source 1x BS 05D, Magnetic Field Source 1x BS 05DU, Magnetic Field Source 1x ES 00, E-Field Source 1x ES 01, E-Field Source 1x ES 02, E-Field Source 1x ES 05D, E-Field Source 1x ES 08D, E-Field Source 1x MS 02, Magnetic Field Probe 1x E1 acc, Accessories 1xNT FRI EU, Power Supply Unit 1xE1 case, System Case 1xE1 m, E1 Set User Manual Recommended products S2 set, Magnetic Field Probes for E1
